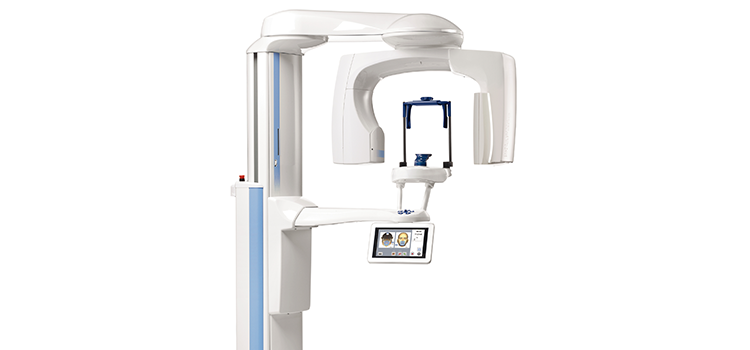

Planmeca ProMax 3D Max

Planmeca ProMax 3D Max

The unique Planmeca ProMax 3D product family offers equipment for all maxillofacial imaging. All volume sizes from the smallest special cases to whole skull images are available. Planmeca ProMax 3D Max, the dedicated CBVT X-ray unit, is designed to obtain complete information on patient anatomy in the minutest detail. With a maximum field of view (FOV) of Ø23 x 26 cm, it offers entirely new possibilities in diagnostics. Advanced imaging software tools maximise the benefits.

3D Imaging Brochure

Planmeca is the first company in the maxillofacial imaging industry to introduce motion artefact correction, Planmeca CALM™ (Correction Algorithm for Latent Movement), to end users.

  •   • Never miss a shot
  •   • Patient movement correction
  •   • Capture artefact-free images
  •   • Cancel the effects of patient movement
  •   • Assure stability in imaging

With this new algorithm, patient movement during CBCT acquisition is no longer a reason for retakes. Planmeca CALM™ will not only save time for clinicians but also guard patients from unnecessary exposures.

Upgrade to CALMTM

Planmeca CALM is now available as an update for all Planmeca ProMax® 3D units.

Contact us for details about upgrading!

Ultra Low DoseTM imaging protocols, enable high quality CBCT imaging with an even lower effective patient dose than standard 2D panoramic imaging. This pioneering imaging protocol is based on intelligent 3D algorithms developed by Planmeca and offers a vast amount of detailed anatomical information at a very low patient dose.

This intelligent protocol can be used with all voxel sizes and in all imaging modes from Normal to Endodontic. Using the Planmeca Ultra Low Dose protocol reduces the eff ective patient dose by 75–80%.


Planmeca Ultra Low Dose
Scientific studies on effective dose.

Control Panel

  •   • Clear and straightforward graphical user interface guides you smoothly through the work process

  •   • Pre-programmed sites and exposure values for different image types and targets save you time and allow you to focus on your patients



The unique ´Planmeca approach"

  •   • Effortless positioning with open-face architecture
  •   • Unrestricted view of your patient
  •   • No claustrophobic feeling for your patient
  •   • Fine adjustment using positioning lasers and joystick
  •   • Verify correct positioning with a scout image
  •   • Easy wheelchair & Casualty Trolley access

Romexis Planmeca Romexis® is an advanced, easy-to-use software suite providing a rich set of tools to meet the imaging requirements demanded by any referrer.

It supports the most versatile range of 2D and 3D imaging modalities & DICOM standard compliance guarantees that images can be processed with 3rd party software or shared via hospital PACS.

Romexis: Read more.

Imaging console In modern dentistry, the demand for implant surgery is steadily growing, which has created a need for more advanced X-ray imaging systems.
To meet the needs of modern surgical dentistry and to supply clear, dependable imaging in a three-dimensional format with limited patient radiation dose, Planmeca ProMax 3D Max utilises Cone Beam Volumetric Tomography (CBVT) technology.
This innovative, versatile, and dynamic imaging device will open up new possibilities for on-site dentists. Planmeca ProMax 3D Max complies with a multitude of diagnostic requirements: those of endodontics, periodontics, orthodontics, implantology, as well as dental and maxillofacial surgery, and TMJ analysis.

Planmeca ProMax 3D Max produces high-resolution volumetric studies of the mandible and maxilla for analysing the available bone structure, the location of the mandibular canal, and the correct position for the implant. Pre-surgical planning reaches a new level of precision.

ImagesThird molars, maxillary cuspids, supernumerary teeth, and impactions challenge the clinician to identify the tooth”s orientation. By using Planmeca ProMax 3D Max, all angles and orientations become clearly visible. Imaging any region of interest in the maxillofacial region is effortless, as the volume sizes include everything from full maxillofacial image size to the smallest size intended for single tooth imaging. Planmeca ProMax 3D Max studies provide full visualisation of all classes of orthodontic malocclusion. This is highly advantageous in orthodontic planning, as time is saved and patient radiation dose reduced. Planmeca ProMax 3D Max provides the image data in the correct anatomic 1:1 ratio, with no need to correct for geometric magnification. Planmeca ProMax 3D Max also provides high-resolution TMJ studies for true and accurate evaluations of the joint arthritides, condylar morphology, and the condyle-fossa relationship.

The ROI (Region of Interest) reconstruction function can generate a new small voxel volume from the image data of a previously taken large voxel volume. This enables more precise diagnosis without producing any extra dose for the patient.

Adjustable volume size



Planmeca ProMax 3D Max complies with a multitude of diagnostic requirements: those of implantology, endodontics, periodontics, orthodontics, as well as dental and maxillofacial surgery, and TMJ analysis. It is also an excellent tool for diagnosing ear, maxillary sinus, and respiratory tract diseases. Planmeca ProMax 3D Max provide volumes sizes for every clinical application with possibility to adjust volume position according to acquired scout images.

The 3D image volume range covers everything between single tooth and whole facial region. The smallest 42 x 30 mm volume is intended e.g. for molar area where the largest 230 x 260 mm volume size gives overview of the whole facial area e.g. for orthodontic applications. For every volume size, different resolution modes are available: high, normal and low dose resolutions.

Planmeca ProMax 3D Mid offers different imaging modes for different needs.
This allows the operator to easily select the optimal volume size, volume position, resolution and dose to produce the correct clinical outcome at the lowest possible patient dose.
Different programs are set up for different clinical imaging requirements to best harness the flexibility of this system and to ensure the best possible workflow. The low dose mode can be used for example in orthodontic studies. A special high definition program is developed for imaging of small size ear bones.

Planmeca Romexis is a comprehensive software solution for acquisition, viewing, and processing of 3D radiographs, 3D photos and intraoral surface scans. The powerful combination of these modalities provides the most accurate information of patient anatomy for different needs. Planmeca Romexis software offers specially designed tools for implantologists, endodontists, periodontists, maxillofacial surgeons and radiologists.
Romexis is available for PC & MAC OS platforms, and is fully DICOM compliant.

Romexis: Read more.

The Planmeca Romexis 3D rendering view gives an immediate overview of the anatomy and serves as an excellent patient education tool. The images can be instantly viewed from different projections or converted into panoramic images and cross sectional slices. Measuring and annotation tools such as nerve canal tracing assist in safe and accurate planning of treatment.

Implant image Planmeca Romexis allows easy planning and verification of implant placement using realistic implant models from several manufacturers. Soft tissue surface scan and crown design can be imported and superimposed with 3D X-ray data providing a perfect environment for implant planning. The virtual treatment plan can be materialised into a real implant guide that can be used to accomplish your treatment exactly as planned.
The dedicated TMJ module provides tools for easy and accurate diagnosis of the TMJ area. The size, location and alignment of the projections can be freely defined and separate views are provided for both TMJs for easy side by side comparison of anatomy.

iPand and iPhone

Planmeca iRomexis is a mobile companion application for Planmeca Romexis imaging software designed for Apple iPhone and iPad devices. It allows viewing of 2D and 3D images, 3D renderings and Planmeca ProFace images. Images can be made available for mobile use with Planmeca Online, and downloaded on Wifi and 3G networks wherever you are.

Experience a new level of freedom and cooperation with Planmeca iRomexis. The application is available free at iTunes App Store.

Implant Planning A unique SmartPan imaging system uses the same 3D sensor as used for panoramic imaging. This eliminates need to change sensors. The SmartPan system automatically calculates 9 different panoramic curves in 2 mm shifts from the panoramic exposure data and one layer where the sharpness is automatically adjusted for all regions. The user can browse between the panoramic images and select the most suitable for diagnosis after the exposure.
This is a low dose 2D application.

The panoramic exposure is optimised only to denture area. By adjusting image height and width the image area and thus patient dose can be significantly reduced. In a combined panoramic and TMJ program both temporomandibular joints will be showing in the image in an optimal and adjustable projection angle.

ProFace Planmeca's optional ProFace is a unique CBVT imaging upgrade to deliver integrated 3D face scanned imaging. Designed to fulfil the most diverse diagnostic needs of today”s maxillofacial and dental professionals, it acquires patient”s facial 3D photo in a radiation-free process giving the medical or dental professional opportunity to plan operations and document the follow-up images. One single scan generates both a 3D photo and a CBVT volume. Alternatively, the 3D photo can be acquired separately in a completely radiation-free process: the lasers scan the facial geometry and the digital cameras capture the colour texture of the face.

The 3D photo visualises soft tissue in relation to dentin and facial bones, providing an effective follow-up tool for maxillofacial operations. As Planmeca ProMax 3D ProFace acquires both a CBVT image and a 3D photo in single scan, the patient position, facial expression, and muscle position remain unchanged, resulting in perfectly compatible images. Careful preoperative planning, where the medical professional can study the facial anatomy thoroughly using Planmeca Romexis software, facilitates a detailed operation and enhances the aesthetic results.

The motorized patient support further improves the already easy patient positioning as the imaging arm automatically drives itself to the correct height. It takes stitching of several basic volumes into a new level. The patient positioning system keeps the patient stationary while the unit drives from imaging position to another.

Range of images The unique design allows an exceptional range of image sizes and formats with field sizes of up to 30 x 27 cm (11.8 x 10.6 in.) making digital lateral radiographs of the whole skull very easy. With the soft tissue filter applied in the Planmeca Romexis imaging software the images can be viewed with or without the filter.
Model The image data can also be used for ordering Planmeca ProModel, a patient specific physical model that serves as a beneficial tool for preoperative planning of advanced implant, oral and maxillofacial surgeries.
Range of movement

The Planmeca ProMax platform”s unique SCARA technology (Selectively Compliant Articulated Robot Arm) enables free image geometry formation. Planmeca”s patented, computer-controlled SCARA robotic arm can produce any movement pattern required, ensuring perfectly accurate and reliable image volume positioning and enabling image volume diameter adjustment.

Complement the splendid design of your Planmeca ProMax® 3D X-ray unit by giving it a personal touch with your favorite colours. Select the perfectly matching shades from our exquisite and inspiring collection and create the looks of your dreams! Colour
